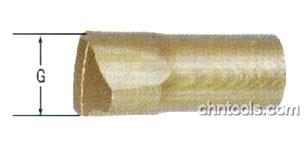

| 一字刃钻头 |
 |
| 型号 |
G(mm) |
适用钎杆 |
| TC-15 |
20,21,22 |
15T |
| TC-19 |
24,26,28,30,32,34,36,38 |
19T,19HS19HL |
| TC-22 |
28,30,32,34,36,38,40,42,44,46,48 |
22HS,22HL |
|

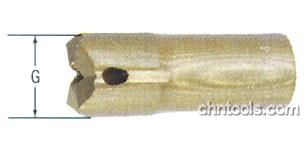

| 十字刃钻头 |
 |
| 型号 |
G(mm) |
适用钎杆 |
| TX-19 |
26,28,30,32,34,36,38 |
19T,19HS19HL |
| TX-22 |
28,30,32,34,36,38,40,42,44,46,48,50,55,60,65 |
22HS,22HL |
|

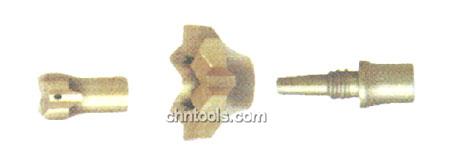

| 扩孔钎头组 |
 |
| 型号 |
G(mm) |
适用钎杆 |
| TXW- |
60,70,80,90,100,110,120,13,150 |
22HS,22HL |
|
| 钻机钢钎 |
 |
| 型号 |
HXR |
总长(L) |
| 22HS |
7/8×3-1/4 |
0.3,0.4,0.5,0.6,0.9,1,1.2,1.5,1.8,
2,2.1,2.4,2.5,2.7,3,3.5,4,4.5,5,5.5 |
| 22HL |
7/8×4-1/4 |
|
| 锤机钢钎 |
 |
| 型号 |
HXR |
总长(L) |
| 15T |
R3/4×5/8H |
0.25,0.3,0.4,0.5,0.6,0.7,0.8,0.9,1,1.1 |
| 19T |
R3/4×5/8H |
0.3,0.4,0.5,0.6,0.7,0.8,0.9,1 |
|
| 锤机钎头 |
 |
| G |
钎尾尺寸 |
|
| 13 |
R3/4×5/8H |
250,350 |
| 14 |
R3/4×5/8H |
230,250,400 |
| 14.5 |
R3/4×5/8H |
250,300 |
| 15 |
R3/4×5/8H |
300 |
| 16 |
R3/4×5/8H |
250,280,400,500,600,700 |
| 17.5 |
R3/4×5/8H |
300 |
| 18 |
R3/4×5/8H |
280,400,500,600,700 |
| 19 |
R3/4×5/8H |
300,400,500,600,700 |
| 20 |
R3/4×5/8H |
280,400,500,600,700 |
| 21.5 |
R3/4×5/8H |
300 |
| 22 |
R3/4×5/8H |
280,400,500,600,700 |
|

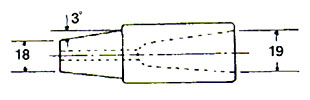

| 19×22锤机转换头 |
 |
|
| 锤机用套筒转换头 |
 |
|
| |
| |
| |
| |
| |
|
