| 负载能力(吨) | 5 | 10 | 20 | 30 | 50 | 75 | 100 | 150 | |
| 行程(英寸) | 9/16 | 7/16 | 7/16 | 1/2 | 5/8 | 5/8 | 5/8 | 9/16 | |
| 订货号 | RLS50 | RLS100 | RLS200 | RLS300 | RLS500S | RLS750S | RLS1000S | RLS1500S | |
| 油量(立方英寸) | .62 | 1.0 | 2.0 | 3.2 | 6.0 | 9.9 | 12.3 | 17.2 | |

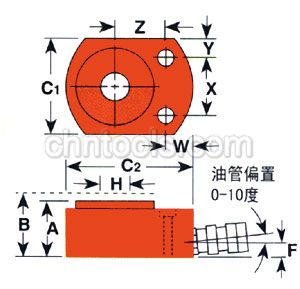

| A | 活塞缩回后总高度(英寸) | 1(5/8) | 1(3/4) | 2 | 2(5/16) | 2(5/8) | 3(1/8) | 3(3/8) | 4 |
| B | 活塞伸出后总高度(英寸) | 2(3/16) | 2(3/16) | 2(7/16) | 2(3/16) | 3(1/4) | 3(3/4) | 4 | 4(9/16) |
| C1&C2 | 外圆直径(英寸) | 1(5/8)×2(9/16) | 2(3/16)×3(1/4) | 3×4 | 3(3/4)×4(1/2) | 4(1/2)×5(1/2) | 5(17/32)×6(1/2) | 6×7 | 7(1/2)×8(1/2) |
| F | 底面到油口的距离(英寸) | 3/4 | 5/8 | 21/32 | 23/32 | 27/32 | 1 | 1 | 1(5/16) |
| H | 活塞杆直径(英寸) | 5/8 | 3/4 | 1(1/8) | 1(3/8) | 1(3/4) | 2(1/8) | 2(1/2) | 3 |
| W | 安装孔位置(英寸) | 3/4 | 11/16 | 23/32 | 13/16 | 15/16 | 15/16 | 15/16 | 1(15/16) |
| X | 1(1/8) | 1(7/16) | 1(15/16) | 2(1/16) | 2(5/8) | 3 | 3 | 4(5/6) | |
| Y | 1/4 | 3/8 | 17/32 | 27/32 | 15/16 | 1(17/64) | 1(1/2) | 1(7/16) | |
| Z | 1 | 1(5/16) | 1(9/16) | 1(3/4) | 2(1/8) | 2(19/32) | 2(13/16) | 3(1/8) | |
| 油缸直径(英寸) | 1(1/8) | 1(11/16) | 2(3/8) | 2(7/8) | 3(1/2) | 4(1/2) | 5 | 6(1/4) | |
| 油缸有效面积(平方英寸) | .994 | 2.236 | 4.430 | 6.492 | 9.621 | 15.904 | 19.635 | 30.680 | |
| 额定载荷时的内压力(psi) | 10,061 | 8,943 | 9,029 | 9,242 | 10,394 | 9,431 | 10,186 | 9,778 | |
| 10000psi时的负载 | 4.97 | 11.18 | 22.15 | 32.46 | 48.10 | 79.52 | 98.17 | 153.39 | |
| 重量(磅) | 2.2 | 3.3 | 5.6 | 8.6 | 14.0 | 23.3 | 30.0 | 52.0 | |
