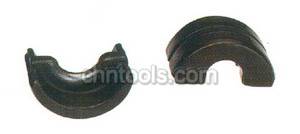

| LGJ35-LGJ240 中国专用钳压管压模 |
 |
- LGJ35,LGJ50,LGJ70,LGJ95适用于TP-400,TP-400H,TP-300,TP-300H,TP-240,TP-240H,TP-800H,TP-800G
- LGJ120,LGJ150,LGJ185,LGJ240适用于TP-800H,TP-800G
|
| 压模编号 |
线规mm2 |
钳接部位尺寸 |
压口数 |
凹槽处压 |
| a1 |
a2 |
a3 |
后外径 |
| LGJ35 |
35 |
34 |
42.5 |
93.5 |
14 |
17.5 |
| LGJ50 |
50 |
38 |
48.5 |
10.5 |
16 |
20.5 |
| LGJ70 |
70 |
46 |
54.5 |
123.5 |
16 |
25.0 |
| LGJ95 |
95 |
54 |
61.5 |
142.5 |
20 |
29.0 |
| LGJ120 |
120 |
62 |
67.5 |
160.5 |
24 |
33.0 |
| LGJ150 |
150 |
64 |
70.0 |
166.0 |
24 |
36.0 |
| LGJ185 |
185 |
66 |
74.5 |
173.5 |
26 |
39.0 |
| LGJ240 |
240 |
62 |
68.5 |
161.5 |
2×14 |
43.0 |
|
| R30型 中国铜管端子专用(六角压接) |
 |
- 适用TP-400H,TP-300H,TP-240H，TP-400,TP-300,TP-240,TP-800H
|
| 压模编号 |
线规mm2 |
压模编号 |
线规mm2 |
| B3010 |
CU10 |
B30120 |
CU120 |
| B3016 |
CU16 |
B30150 |
CU150 |
| B3025 |
CU25 |
B30185 |
CU185 |
| B3035 |
CU35 |
B30240 |
CU240 |
| B3050 |
CU50 |
B30300 |
CU300 |
| B3070 |
CU70 |
B30400 |
CU400 |
| B3095 |
CU95 |
|
|
|
|
| |
| |
|
