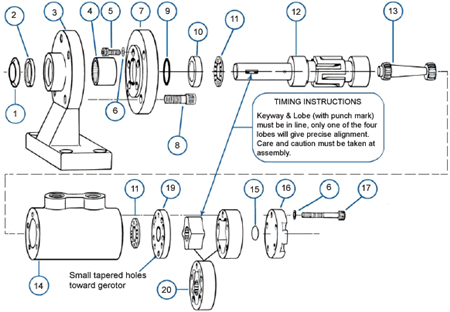

HYDRAULIC MOTOR COMPONENT PARTS |
Item No |
Part number |
Part description |
Note |
1 |
BSS-1 |
Blood slinger shield |
optional seal-order separately |
2 |
48CF |
Dirt seal |
all motors |
3 |
60CFM |
Foot mount |
FM style motors only |
4 |
52CFM |
Shaft bearing |
FM style motors only |
5 |
62B |
Screw(10-32*1\2) |
all motors -5 required |
6 |
50C |
Copper washer seal |
all motors -10 required |
7 |
10CF |
Round flange |
standard flange |
7 |
10CF-2-BOLT |
Oval flange |
ordering suffix "-2-bolt" |
7 |
10CF-4-BOLT |
Square flange |
ordering suffix "-4-bolt" |
7 |
10CF-T |
Turned down flange |
ordering suffix"-T" |
7 |
10CF-ALUM |
Round flange |
Aluminum |
7 |
10CF-T-ALUM |
Turned down flange |
Aluminum |
8 |
46CA |
Screw(5/16-18*3/4) |
FM style motors only |
9 |
31C |
Shaft seal-teflon |
standard seal |
9 |
31C-VITON |
Shaft seal-viton |
optional seal |
10 |
64CF |
Thrust race |
all motors |
11 |
17CF |
Thrust bearing |
all motors-2 required |
12 |
15CF |
Motor shaft-short |
F style motors only |
12 |
15CFM |
Motor shaft-long |
FM & FMO style motors only |
12 |
15CF-1 |
Motor shaft-1 flat |
F style motors only |
12 |
15CFM-1 |
Motor shaft-1 flat |
FM & FMO style motors only |
12 |
15CF-2 |
Motor shaft-2 flats |
F style motors only |
12 |
15CFM-2 |
Motor shaft-2 flats |
FM & FMO style motors only |
12 |
15CFT |
Motor shaft-tapped |
F style motors only |
12 |
15CFMT |
Motor shaft-tapped |
FM & FMO style motors only |
12 |
15CFMK |
Motor shaft with key |
FM & FMO only-3/16*1-1/4 key |
13 |
13CA-1/4 |
Spline drive |
A25 motors only |
13 |
13C |
Spline drive |
A37.A50.A62.A100.A125 only |
14 |
11CF |
motor body |
all motors except aluminum |
14 |
11CF-ALUM |
motor body |
aluminum |
15 |
27CA-125 |
gerotor spacer |
A62 motors only |
15 |
24CD-500 |
gerotor spacer |
A100 motors only |
15 |
27CB-745 |
gerotor spacer |
A125 motors only |
16 |
14CF |
gerotor cover |
all motors |
17 |
39CF |
screw (10-32*1-1/4) |
A25.A37.A50 & A62-5 req |
17 |
39B-A |
screw (10-32*1-3/4) |
A100 motors only -5 required |
17 |
39CF-A |
screw (10-32*2) |
A125 motors only -5 required |
19 |
12C-.406 |
separator plate |
A25 motors only |
19 |
12C-.281 |
separator plate |
A37 motors only |
19 |
12C-.156 |
separator plate |
A50.A62.A100.A125 motors only |
20 |
18C-1/4 |
gerotor assembly |
A25 motors only |
20 |
18C-3/8 |
gerotor assembly |
A37 motors only |
20 |
18C-1/2 |
gerotor assembly |
A50 motors only |
20 |
18C-5/8 |
gerotor assembly |
A62 motors only |
20 |
18C-1 |
gerotor assembly |
A100 motors only |
20 |
18C-1-1/4 |
gerotor assembly |
A125 motors only |
seal kits |
ASK-1 |
seal kit includes(1)31C,(1)48CF,(10)50C & (2)17CF |
VITON-ASK-1 |
seal kit includes(1)31C-VITON,(1)48CF,(10)50C & (2)17CF |
