| 液压马达产品综述 |
 |
| 产品特点 |
Hydraulic Motors: Short Shaft Flange Mount,
Long Shaft Mount
and Pedestal Foot Mount
High power in a compact design, these hydraulic motors lend themselves to a host of potential applications. Lamina's gerotor hydraulic motors are available in 6 sizes, with different torques ranging from 0 to 656 in-lbs. and speeds from 0 to 2255 RPM. Hydraulic motors are available with steel or aluminium body.
Hydraulic motors manufactured by Lamina have a main shaft that can be adapted, with a chuck or collet, to hold tools for rotary machining operations, such as drilling, boring, reaming and the like. Motor shaft options include Woodruff key, one or two flats, tapped hole on end of shaft, and larger key on shaft.
Lamina Hydraulic motors are available with your choice of six flange options for direct bolt mounting. Other than the standard round flange, motors can be specified with a square, oval, and smaller turned down flange. The two round flange options are available in aluminum. The pedestal foot mount motor uses the standard round flange for mounting.
The unusually small size of Anchor Lamina's gerotor hydraulic motor makes it a natural choice for many applications.
- Plastic injection molding, thread core remover
- Reactor repair
- Oil pipeline inspection equipment
- Chicken processing machinery
- Box sealing equipment
- Tool manipulator, undersea, oil well
- Camera manipulator, under sea
- Camera manipulator, nuclear reactor
- Drill and tap machine tool motor, also reactor repair
- Gang (multiple) drilling, wood
- Electric motor coil winder
- Electrical discharge (E.D.M.) machines
- Plywood machines (brushes)
- Jumbo jet maintenance jacks
- C.N.C, D.N.C., T.C. tool changer drive motors
- Orange peeling machines
- Sewing machines, automatic X Y control
- Diamond wheel dresser
- Milling, sawing applications
- Fan drive motor
- Agricultural applications
- Conveyor drive motor
- Automatic clamping
- Drill pointer machines
- Textile washing agitator motor
- Pipe valve openers
- Dynamite blast hole pump drive motor
- Index mechanism drive motor
- Hose reel retraction
|
|

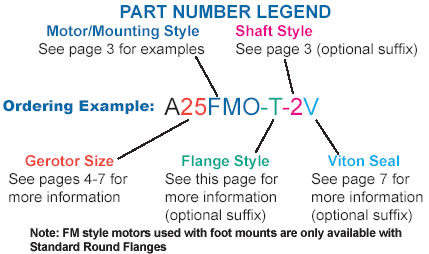

| 产品型号说明 |
 |
| 产品参数说明 |
Please note : The capacity (GPM) speed (RPM),and output torque (IN-LBS) provided in the table are maximum quantities for specific gerotor sizes.
Gerotor motor |
A25 |
A37 |
A50 |
A62 |
A100 |
A125 |
Displacement
(cubic inches per revolution) |
0.82 |
1.16 |
1.53 |
1.88 |
3.11 |
3.73 |
Gerotor size(inches) |
0.250 |
0.375 |
0.500 |
0.625 |
1.000 |
1.250 |
Capacity(MAX GPM) |
8 |
8 |
8 |
8 |
8 |
8 |
Speed (max rpm) |
2255 |
1592 |
1206 |
982 |
595 |
495 |
Torque (max inch-pounds) |
149 |
222 |
284 |
363 |
570 |
656 |
Maximum side load
(pounds-force) |
300 |
300 |
300 |
300 |
300 |
300 |
Maximum push force
(pounds-force) |
500 |
500 |
500 |
500 |
500 |
500 |
Maximum pull force
(pounds-force) |
300 |
300 |
300 |
300 |
300 |
300 |
Sample
Motor
Weights
(pounds) |
F |
Standard flange-short shaft |
3.55 |
3.55 |
3.55 |
3.60 |
3.80 |
3.90 |
FMO |
Standard flange-long shaft |
3.65 |
3.65 |
3.65 |
3.70 |
3.90 |
4.00 |
FM |
Foot mount-long shaft |
6.15 |
6.15 |
6.15 |
6.20 |
6.40 |
6.50 |
F-T |
Turned down flange-short shaft |
3.10 |
3.10 |
3.10 |
3.15 |
3.35 |
3.45 |
FMO-T |
Turned down flange-long shaft |
3.20 |
3.20 |
3.20 |
3.25 |
3.45 |
3.55 |
FA-A |
Aluminum body & flange-short shaft |
2.45 |
2.45 |
2.45 |
2.50 |
2.70 |
2.80 |
FMOA-A |
Aluminum body & flange-long shaft |
2.55 |
2.55 |
2.55 |
2.60
|
2.80 |
2.90 |
FA-TA |
Aluminum body & Turned down flange-short shaft |
2.30 |
2.30 |
2.30 |
2.35 |
2.55 |
2.65 |
FMOA-TA |
Aluminum body & Turned down flange-long shaft |
2.40 |
2.40 |
2.40 |
2.45 |
2.65 |
2.75 |
|
|
| |
|
|
|
