| TE-TX钻头 |
| 钻头直径mm |
工作长度mm |
TE35 |
品名 |
品号 |
| 6 |
150 |
○ |
TE-TX6／28 |
339144 |
| 8 |
100 |
○ |
TE-TX8／23 |
339145 |
| 8 |
200 |
○ |
TE-TX8／33 |
339146 |
| 10 |
100 |
○ |
TE-TX10／23 |
339147 |
| 10 |
200 |
○ |
TE-TX10／33 |
339148 |
| 10 |
300 |
○ |
TE-TX10／43* |
339149 |
| 12 |
100 |
● |
TE-TX12／23 |
333740 |
| 12 |
200 |
● |
TE-TX12／43 |
333741 |
| 12 |
400 |
● |
TE-TX12／53* |
333742 |
| 12 |
550 |
● |
TE-TX12／69* |
333743 |
| 14 |
100 |
● |
TE-TX14／23 |
333744 |
| 14 |
200 |
● |
TE-TX14／33 |
333745 |
| 14 |
300 |
● |
TE-TX14／43* |
336684 |
| 14 |
400 |
● |
TE-TX14／53* |
333746 |
| 15 |
100 |
● |
TE-TX15／23 |
333747 |
| 15 |
200 |
● |
TE-TX15／33 |
333748 |
| 15 |
400 |
● |
TE-TX15／53* |
333749 |
| 16 |
100 |
● |
TE-TX16／23 |
333750 |
| 16 |
200 |
● |
TE-TX16／33 |
333751 |
| 16 |
400 |
● |
TE-TX16／53* |
333752 |
| 18 |
200 |
● |
TE-TX18／32 |
338996 |
| 18 |
400 |
● |
TE-TX18／52* |
338997 |
| 20 |
200 |
● |
TE-TX20／32 |
338999 |
| 20 |
400 |
● |
TE-TX20／52* |
339000 |
| 22 |
200 |
● |
TE-TX22／32 |
339002 |
| 22 |
400 |
● |
TE-TX22／52* |
339003 |
| 24 |
200 |
○ |
TE-TX24／32 |
339005 |
| 25 |
200 |
○ |
TE-TX25／32 |
339006 |
| 25 |
400 |
○ |
TE-TX25／52* |
339007 |
| 28 |
200 |
○ |
TE-TX28／32 |
339009 |
| 28 |
400 |
○ |
TE-TX28／52* |
339010 |
| 30 |
250 |
○ |
TE-TX30／37 |
339011 |
| 30 |
450 |
○ |
TE-TX30／57* |
339012 |
| 32 |
250 |
○ |
TE-TX32／37 |
339013 |
| 32 |
450 |
○ |
TE-TX32／57* |
339014 |
| *用一个同样直径的短钻头先钻至少150mm深 ●主要使用○可能使用 |
|
| TE-YX钻头 |
| 钻头直径mm |
工作长度mm |
TE56 |
TE76 ATC |
品名 |
品号 |
| 12 |
200 |
○ |
○ |
TE-YX12／35 |
333753 |
| 12 |
400 |
○ |
○ |
TE-YX12／55* |
333754 |
| 12 |
550 |
○ |
○ |
TE-YX12／69* |
333755 |
| 14 |
200 |
○ |
○ |
TE-YX14／35 |
333756 |
| 14 |
400 |
○ |
○ |
TE-YX14／55* |
333757 |
| 15 |
200 |
○ |
○ |
TE-YX15／35 |
333758 |
| 15 |
400 |
○ |
○ |
TE-YX15／55* |
333759 |
| 16 |
200 |
● |
○ |
TE-YX16／35 |
333760 |
| 16 |
400 |
● |
○ |
TE-YX16／55* |
333761 |
| 16 |
800 |
● |
○ |
TE-YX16／92* |
370564 |
| 18 |
200 |
● |
○ |
TE-YX18／32 |
339015 |
| 18 |
400 |
● |
○ |
TE-YX18／52* |
339016 |
| 18 |
800 |
● |
○ |
TE-YX18／92* |
339017 |
| 20 |
200 |
● |
○ |
TE-YX20／32 |
339018 |
| 20 |
400 |
● |
○ |
TE-YX20／52* |
339019 |
| 20 |
800 |
● |
○ |
TE-YX20／92* |
339020 |
| 22 |
200 |
● |
● |
TE-YX22／32 |
339021 |
| 22 |
400 |
● |
● |
TE-YX22／52* |
339022 |
| 22 |
800 |
● |
● |
TE-YX22／92* |
339023 |
| 24 |
200 |
● |
● |
TE-YX24／32 |
339024 |
| 24 |
400 |
● |
● |
TE-YX24／52* |
339025 |
| 25 |
200 |
● |
● |
TE-YX25／32 |
339026 |
| 25 |
400 |
● |
● |
TE-YX25／52* |
339027 |
| 25 |
800 |
● |
● |
TE-YX25／92* |
339028 |
| 26 |
150 |
○ |
● |
TE-YX26／26 |
339029 |
| 28 |
200 |
○ |
● |
TE-YX28／32 |
339030 |
| 28 |
400 |
○ |
● |
TE-YX28／52* |
339031 |
| 30 |
250 |
○ |
● |
TE-YX30／37 |
339032 |
| 30 |
450 |
○ |
● |
TE-YX30／57* |
339033 |
| 32 |
250 |
○ |
● |
TE-YX32／37 |
339034 |
| 32 |
450 |
○ |
● |
TE-YX32／57* |
339035 |
| 32 |
800 |
○ |
● |
TE-YX32／92* |
339036 |
| 35 |
250 |
○ |
● |
TE-YX35／57* |
370846 |
| 37 |
250 |
○ |
● |
TE-YX37／37 |
339037 |
| 37 |
450 |
|
● |
TE-YX37／57* |
339038 |
| 37 |
800 |
|
● |
TE-YX37／92* |
339039 |
| 40 |
450 |
|
● |
TE-YX40／57* |
339040 |
| *用一个同样直径的短钻头先钻至少150mm深 ●主要使用○可能使用 |
|
| TE-YX特殊钻头 |
| 钻头直径mm |
工作长度mm |
适用机具TE56 |
TE-76 |
品名 |
品号 |
| 12 |
760 |
○ |
○ |
TE-YX12／90* |
78367 |
| 12 |
1160 |
○ |
○ |
TE-YX12／130* |
78552 |
| 14 |
760 |
○ |
○ |
TE-YX14／90* |
78580 |
| 14 |
1160 |
○ |
○ |
TE-YX14／130* |
78631 |
| 16 |
1160 |
● |
○ |
TE-YX16／130* |
77931 |
| 18 |
1160 |
● |
○ |
TE-YX18／130* |
28596 |
| 20 |
860 |
● |
○ |
TE-YX20／100* |
88435 |
| 20 |
1160 |
● |
○ |
TE-YX20／130* |
78416 |
| 22 |
860 |
● |
● |
TE-YX22／100* |
78629 |
| 22 |
1160 |
● |
● |
TE-YX22／130* |
78628 |
| 24 |
760 |
● |
● |
TE-YX24／90* |
28836 |
| 24 |
1160 |
● |
● |
TE-YX24／130* |
77988 |
| 25 |
860 |
● |
● |
TE-YX25／100* |
77853 |
| 25 |
1160 |
● |
● |
TE-YX25／130* |
77828 |
| 28 |
860 |
○ |
● |
TE-YX28／100* |
78680 |
| 28 |
1160 |
○ |
● |
TE-YX28／130* |
77638 |
| 30 |
860 |
○ |
● |
TE-YX30／100* |
28841 |
| 30 |
1160 |
○ |
● |
TE-YX30／130* |
78630 |
| 32 |
860 |
○ |
● |
TE-YX32／100* |
78638 |
| 32 |
1160 |
○ |
● |
TE-YX32／130* |
78626 |
| 37 |
860 |
○ |
○ |
TE-YX37／100* |
78365 |
| 37 |
1160 |
○ |
○ |
TE-YX37／130* |
78624 |
| 40 |
760 |
○ |
○ |
TE-YX40／92* |
30889 |
| *用一个同样直径的短钻头先钻至少150mm深 |
|

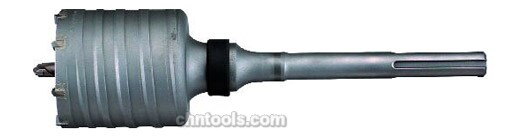

| TE-Y-BK空心钻头 |
| 钻头直径mm |
工作长度mm |
适用机具TE56 |
TE76 |
品名 |
品号 |
| 45 |
290 |
● |
● |
TE-Y-BK45／290 |
307053 |
| 45 |
550 |
● |
● |
TE-Y-BK45／550 |
307054 |
| 50 |
290 |
● |
● |
TE-Y-BK50／290 |
307055 |
| 50 |
550 |
● |
● |
TE-Y-BK50／550 |
307056 |
| 55 |
290 |
● |
● |
TE-Y-BK55／290 |
307057 |
| 55 |
550 |
● |
● |
TE-Y-BK55／550 |
307058 |
| 68 |
290 |
● |
● |
TE-Y-BK68／290 |
307059 |
| 68 |
550 |
● |
● |
TE-Y-BK68／550 |
307060 |
| 82 |
290 |
● |
● |
TE-Y-BK82／290 |
307061 |
| 82 |
550 |
● |
● |
TE-Y-BK82／550 |
307062 |
| 90 |
290 |
● |
● |
TE-Y-BK90／290 |
307063 |
| 90 |
550 |
● |
● |
TE-Y-BK90／550 |
307064 |
| 100 |
430 |
● |
● |
TE-Y-BK100／430 |
307065 |
| 125 |
430 |
● |
● |
TE-Y-BK125／430 |
307066 |
| 150 |
430 |
● |
● |
TE-Y-BK150／430 |
307067 |
| 定向钻头 |
BK-ZB11／14 |
262750 |
| 环（NBR）32×15 |
|
262751 |
| 销钉5M6×24 DIN6325 |
006135 |
|
| TE-Y-GB十字钻头 |
| 钻头直径mm |
工作长度mm |
适用机具TE56 |
TE76 |
品名 |
品号 |
| 40 |
450 |
● |
● |
TE-Y-GB40／59 |
220609 |
| 40 |
780 |
● |
● |
TE-Y-GB40／92 |
220610 |
| 45 |
450 |
● |
● |
TE-Y-GB45／59 |
220611 |
| 45 |
780 |
● |
● |
TE-Y-GB45／92 |
220612 |
| 55 |
450 |
● |
● |
TE-Y-GB55／59 |
028903 |
| 55 |
780 |
● |
● |
TE-Y-GB55／92 |
028904 |
| 66 |
450 |
● |
● |
TE-Y-GB66／59 |
028366 |
| 66 |
780 |
● |
● |
TE-Y-GB66／92 |
028421 |
| 80 |
450 |
● |
● |
TE-Y-GB80／63 |
028367 |
|
|
| |
| |
| |
| |
| |
|
