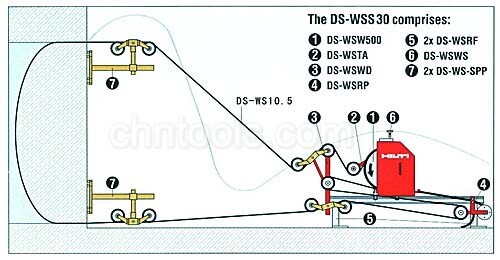

| 钻石线锯系统DS-WSS30 |
 |
| 以下列表部件组成了有两个两米长轨道的液压墙锯系统的模块化伸展和调节 |
| 基本设备 |
辅助设备 |
注释/用途 |
数量 |
品名 |
品号 |
| ● |
|
包含①～⑦ |
1 |
DS-WSS30钻石
线锯系统，整套 |
314371 |
| |
● |
附加的，按要求 |
1 |

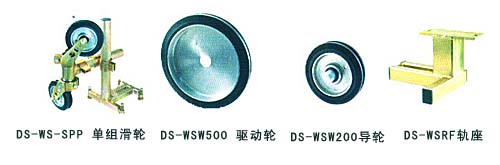

DS-WSS-SPP
单对滑轮组件 |
314372 |
| |
● |
单轮，置换 |
1 |
DS-WSW500驱动轮 |
314373 |
| |
● |
单滑轮，置换 |
1 |
DS-WSW200导轮 |
314374 |
| |
● |
附加的，按要求 |
1 |
DS-WSRF轨座 |
314738 |
| |
|
按要求* |
1 |
DS-WSEW释放滑轮 |
315834 |
| |
● |
专门应用，按要求至少两个* |
1 |
DS-WSPW插入式滑轮组 |
315835 |
|
| DS-W10.5 diamond wires |
 |
| Hilti DS-W10.5 diamond wries for the DS-WS10 wire saw system |
| Ordering designation |
Wire length contents |
Package |
ltem no. |
| DS-W10.5 BC/4.6m* |
4.6m |
1 |
376816 |
| DS-W10.5 BC/7.8m* |
7.8m |
1 |
376817 |
| DS-W10.5 BC/10m* |
10m |
1 |
235835 |
| DS-W10.5 BC/14m* |
14m |
1 |
235836 |
| DS-W10.5 BC/50m |
50m |
1 |
370500 |
| DS-W10.5 BC/100m |
100m |
1 |
370426 |
| DS-W10.5 BC/150m |
150m |
1 |
376633 |
| DS-W10.5 BC per meter** |
- |
1 |
376635 |
|
 |
| Ordering designation |
Wire length contents |
Package |
ltem no. |
| DS-W10.5 LC/4.6m* |
4.6m |
1 |
376818 |
| DS-W10.5 LC/7.8m* |
7.8m |
1 |
376819 |
| DS-W10.5 LC/10m* |
10m |
1 |
235834 |
| DS-W10.5 LC/14m* |
14m |
1 |
235838 |
| DS-W10.5 LC/50m |
50m |
1 |
376630 |
| DS-W10.5 LC/100m |
100m |
1 |
376631 |
| DS-W10.5 LC/150m |
150m |
1 |
376632 |
| DS-W10.5 LC per meter** |
- |
1 |
376634 |
*With factory-fitted flexible connectors
**Available on request |
|

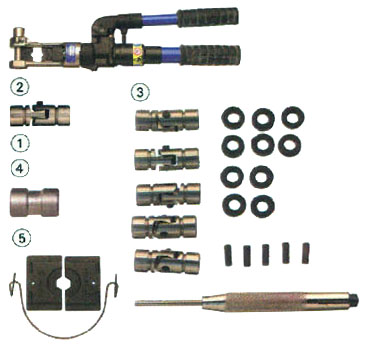

| Accessories for Hilti diamond wires |
 |
| Designation |
Package contents |
Ordering designation |
ltem no. |
Crimping pliers
For crimping connector/sleeves |
1 |
DS-WSTHY |
①235845 |
Flexible connectors
Quick-release type |
1 |
DS-WCMV |
②340427 |
Set of flexible connectors
Quick-release type with pin and O-ring |
5 |
DS-WCSet |
③371388 |
Pin
Replacement pin for quick-release connectors |
10 |
DS-WP |
235842 |
Sleeve
Repair sleeve |
5 |
DS-WS |
④235841 |
O-ring
Fitted between connector and bead |
10 |
O-Ring 10/4,7×2,5 |
235844 |
| Crimping jaws |
2 |
DS-WJ |
⑤340426 |
Angle grinder
For cutting diamond wire |
1 |
AG125-S |
000000 |
|
|
| |
| |
| |
| |
| |
|
