美国恩派克ENERPAC液压油缸 CLL系列单作用自锁式油缸

承载
能力
(KN)

行程
(mm)

 型号

有效
面积
(cm2)

液压油
容量
(cm3)

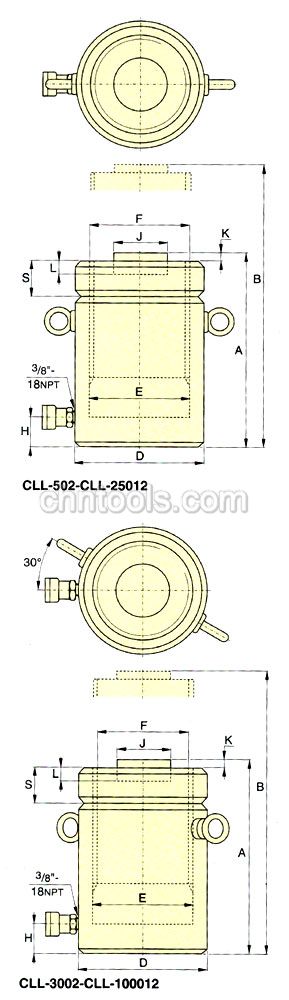

本体
高度
A
(mm)

伸展
高度B
(mm)

外径
D
(mm)

油缸
内径
E
(mm)

柱塞
直径
(螺纹)
F
(mm)

进油口
距底部
高度
H
(mm)

标准
鞍座
直径
J
(mm)

鞍座
凸出
高度
K
(mm)

柱塞孔
深度
L
(mm)

锁定
螺母
高度
S
(mm)

重量
(kg)

型号 *可选配倾斜式鞍座

鞍座
直径
J1
(mm)

鞍座
高度
J2
(mm)

 鞍座
型号

50

(496)

 50 CLL-502 77.9 355 164 214 125 95.0 Tr95×4 30 71 2 13 36 15 CLL-502 71 24 CAT-100
100 CLL-504 77.9 709 214 314 125 95.0 Tr95×4 30 71 2 13 36 20 CLL-504 71 24 CAT-100
150 CLL-506 77.9 1046 264 414 125 95.0 Tr95×4 30 71 2 13 36 25 CLL-506 71 24 CAT-100
200 CLL-508 77.9 1418 314 514 125 95.0 Tr95×4 30 71 2 13 36 30 CLL-508 71 24 CAT-100
250 CLL-5010 77.9 1773 364 614 125 95.0 Tr95×4 30 71 2 13 36 35 CLL-5010 71 24 CAT-100
300 CLL-5012 77.9 2127 414 714 125 95.0 Tr95×4 30 71 2 13 36 40 CLL-5012 71 24 CAT-100

100

(929)

 50 CLL-1002 132.7 664 187 237 165 130.0 Tr130×6 30 71 2 13 44 30 CLL-1002 71 24 CAT-100
100 CLL-1004 132.7 1327 237 337 165 130.0 Tr130×6 30 71 2 13 44 39 CLL-1004 71 24 CAT-100
150 CLL-1006 132.7 1991 287 437 165 130.0 Tr130×6 30 71 2 13 44 48 CLL-1006 71 24 CAT-100
200 CLL-1008 132.7 2654 337 537 165 130.0 Tr130×6 30 71 2 13 44 56 CLL-1008 71 24 CAT-100
250 CLL-10010 132.7 3318 387 637 165 130.0 Tr130×6 30 71 2 13 44 64 CLL-10010 71 24 CAT-100
300 CLL-10012 132.7 3981 437 737 165 130.0 Tr130×6 30 71 2 13 44 73 CLL-10012 71 24 CAT-100

150

(1390)

 50 CLL-1502 198.6 993 209 259 205 159.0 Tr159×6 39 130 2 25 44 53 CLL-1502 130 20 CAT-200
100 CLL-1504 198.6 1986 259 359 205 159.0 Tr159×6 39 130 2 25 44 66 CLL-1504 130 20 CAT-200
150 CLL-1506 198.6 2979 309 459 205 159.0 Tr159×6 39 130 2 25 44 78 CLL-1506 130 20 CAT-200
200 CLL-1508 198.6 3972 359 559 205 159.0 Tr159×6 39 130 2 25 44 92 CLL-1508 130 20 CAT-200
250 CLL-15010 198.6 4965 409 659 205 159.0 Tr159×6 39 130 2 25 44 104 CLL-15010 130 20 CAT-200
300 CLL-15012 198.6 5958 459 759 205 159.0 Tr159×6 39 130 2 25 44 117 CLL-15012 130 20 CAT-200

200

(1859)

 50 CLL-2002 265.6 1330 243 293 235 184.0 Tr184×6 50 130 2 25 50 83 CLL-2002 130 20 CAT-200
150 CLL-2006 265.6 3989 343 493 235 184.0 Tr184×6 50 130 2 25 50 117 CLL-2006 130 20 CAT-200
300 CLL-20012 265.6 7995 493 793 235 184.0 Tr184×6 50 130 2 25 50 170 CLL-20012 130 20 CAT-200

250

(2562)

 50 CLL-2502 366.1 1832 249 299 275 216.0 Tr216×6 50 150 2 25 56 116 CLL-2502 150 21 CAT-250
150 CLL-1206 366.1 5496 349 499 275 216.0 Tr216×6 50 150 2 25 56 162 CLL-1206 150 21 CAT-250
300 CLL-25012 366.1 10995 499 799 275 216.0 Tr216×6 50 150 2 25 56 234 CLL-25012 150 21 CAT-250

300

(3193)

 50 CLL-3002 456.2 2281 295 345 310 241.0 Tr241×6 59 139 5 25 60 173 CLL-3002 195 75 CAT-300
150 CLL-3006 456.2 6843 395 545 310 241.0 Tr241×6 59 139 5 25 60 233 CLL-3006 195 75 CAT-300
300 CLL-30012 456.2 13740 545 845 310 241.0 Tr241×6 59 139 5 25 60 323 CLL-30012 195 75 CAT-300

400

(3919)

 50 CLL-4002 559.9 2800 335 385 350 267.0 Tr266×6 70 159 5 25 70 250 CLL-4002 225 85 CAT-400
150 CLL-4006 559.9 8399 435 585 350 267.0 Tr266×6 70 159 5 25 70 327 CLL-4006 225 85 CAT-400
300 CLL-40012 559.9 16800 585 885 350 267.0 Tr266×6 70 159 5 25 70 441 CLL-40012 225 85 CAT-400

500

(5118)

 50 CLL-5002 731.1 3653 375 425 400 305.0 Tr305×6 80 179 5 25 80 367 CLL-5002 250 91 CAT-500
150 CLL-5006 731.1 10959 475 625 400 305.0 Tr305×6 80 179 5 25 80 466 CLL-5006 250 91 CAT-500
300 CLL-50012 731.1 21930 625 925 400 305.0 Tr305×6 80 179 5 25 80 617 CLL-50012 250 91 CAT-500

600

(5983)

 50 CLL-6002 854.8 4277 395 445 430 330.0 Tr330×6 85 194 5 25 85 446 CLL-6002 275 96 CAT-600
150 CLL-6006 854.8 12830 495 645 430 330.0 Tr330×6 85 194 5 25 85 562 CLL-6006 275 96 CAT-600
300 CLL-60012 854.8 25650 645 945 430 330.0 Tr330×6 85 194 5 25 85 737 CLL-60012 275 96 CAT-600

800

(8238)

 50 CLL-8002 1176.9 5882 455 505 505 387.0 Tr387×6 100 224 5 25 100 709 CLL-8002 320 123 CAT-800
150 CLL-8006 1176.9 17645 555 705 505 387.0 Tr387×6 100 224 5 25 100 870 CLL-8006 320 123 CAT-800
300 CLL-80012 1176.9 35370 705 1005 505 387.0 Tr387×6 100 224 5 25 100 1110 CLL-80012 320 123 CAT-800

1000

(10260)

 50 CLL-10002 1466.4 7329 495 545 560 432.0 Tr432×6 110 249 5 25 110 949 CLL-10002 360 136 CAT-1000
150 CLL-10006 1466.4 21986 595 745 560 432.0 Tr432×6 110 249 5 25 110 1141 CLL-10006 360 136 CAT-1000
300 CLL-100012 1466.4 43980 745 1045 560 432.0 Tr432×6 110 249 5 25 110 1430 CLL-100012 360 136 CAT-1000
