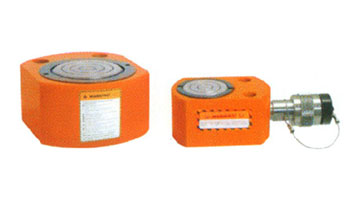

| 单作用超薄型油缸DSM系列 |
 |
| 型号 |
负载能力 |
行程 |
本体高度 |
总体高度 |
外圆直径 |
顶头直径 |
重量 |
| T |
mm |
mm |
mm |
mm |
mm |
kg |
| DSM50 |
5 |
6 |
32 |
38 |
58×41 |
25.4 |
1.0 |
| DSM100 |
10 |
11 |
42 |
53 |
82×55 |
38.1 |
1.4 |
| DSM200 |
20 |
11 |
51 |
62 |
101×76 |
50.8 |
3.1 |
| DSM300 |
30 |
13 |
58 |
71 |
117×95 |
63.4 |
4.5 |
| DSM500 |
50 |
16 |
66 |
82 |
140×14 |
69.8 |
6.8 |
| DSM750 |
75 |
16 |
79 |
95 |
165×139 |
82.6 |
11.3 |
| DSM1000 |
100 |
16 |
85 |
101 |
178×153 |
92.2 |
14.5 |
| DSM1500 |
150 |
16 |
100 |
116 |
215×190 |
114.3 |
26.3 |
|
|
|
|
| |
|
|
|
