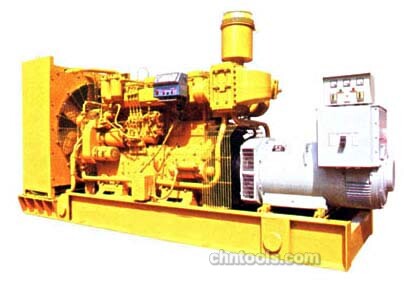

| 恒源190系列柴油发电机组 |
 |
| 机组型号 |
柴油机型号 |
额定功率
(KW／KVA) |
额定电压(A) |
外型尺寸
(L×W×H)mm |
机组重量
(Kg) |
| HX300GF |
4190PZL |
300/375 |
400/230 |
4022×1298×1896 |
6200 |
| HX350GF |
G6190ZLCD |
350/438 |
400/230 |
5925×1760×2268 |
9500 |
| HX400GF |
G6190ZLCD |
400/500 |
400/230 |
4954×1488×2268 |
8000 |
| HX450GF |
G6190ZLCD |
150/563 |
400/230 |
4954×1488×2268 |
8000 |
| HX500GF |
G12V190PZLD-2 |
500/625 |
400/230 |
5925×2040×2678 |
13800 |
| HX550GF |
G12C190PZLD-1 |
550/688 |
400/230 |
4515×2040×2678 |
12000 |
| HX630GF |
G12V190PZLD2 |
630/788 |
400/230 |
5925×2040×2678 |
13600 |
| HX700GF |
G12V190PZLD5 |
700/875 |
400/230 |
5925×2040×2678 |
13600 |
| HX800GF |
G12V190PZLD5 |
800/1000 |
400/230 |
5925×2040×2678 |
13600 |
|
|
| |
| |
| |
| |
| |
| |
| |
|
|
|
