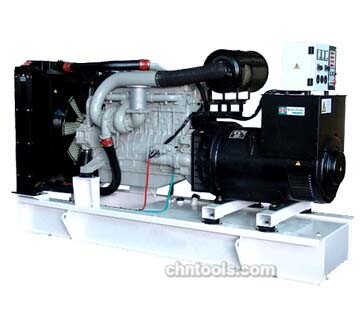

| 恒源斯太尔系列柴油发电机组 |
 |
| 机组型号 |
柴油机型号 |
额定功率
(KW／KVA) |
额定电压(A) |
外型尺寸(L×W×H)mm |
机组重量(Kg) |
| HX40GF |
WD415.16D01 |
40/50 |
400/230 |
1960×840×1390 |
1100 |
| HX75GF |
WD415.16D03 |
75/93.8 |
400/230 |
2050×840×1420 |
1150 |
| HX100GF |
WD615.64D04B |
100/125 |
400/230 |
2250×900×1545 |
1800 |
| HX120GF |
WD615.64D04B |
120/150 |
400/230 |
2550×900×1545 |
1800 |
| HX150GF |
WD615.68D02 |
150/187.5 |
400/230 |
2865×1222×1598 |
2000 |
| HX160GF |
WD615.68D02 |
160/200 |
400/230 |
2865×1222×1598 |
2000 |
| HX180GF |
WD615.46D01 |
180/225 |
400/230 |
2865×1222×1598 |
2100 |
| HX200GF |
ED615.46D01 |
200/250 |
400/230 |
3030×1050×1600 |
2400 |
|
|
| |
| |
| |
| |
| |
| |
| |
|
|
|
